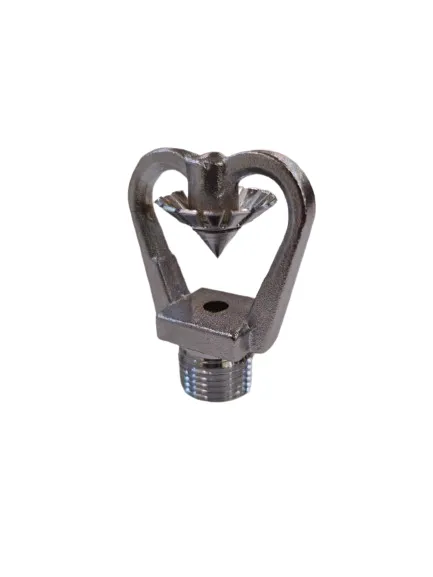

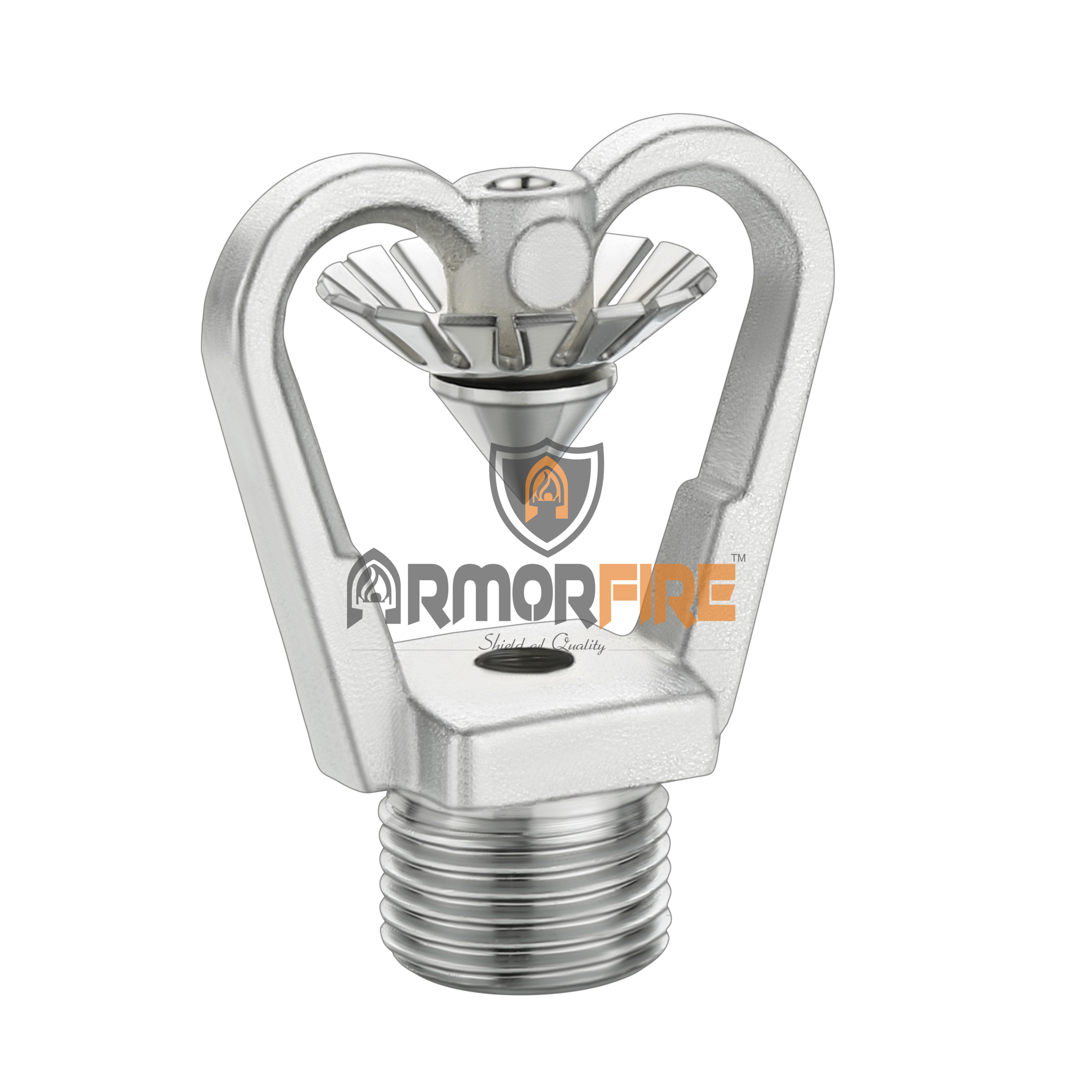

MEDIUM VELOCITY NOZZLES
| General Data | |
|---|---|
| Make | ARMORFIRE |
| Model | MVN |
| Inlet | ½" Male threaded (BSP) inlet (¼" option available) |
| Outlet | Spray nozzle & deflector |
| Material of Construction | Bronze |
| Material of Construction | |
| Body | Bronze IS:291 Gr. 1 |
| Pin | Deflector |
| Deflector | Brass IS:2698 |
| Testing and Quality Control | |
| Dimensional check | See Drawing below |
| Operational test | Flow/Angle as per specified K-factor & spray angle |
| Documentation | Internal inspection report, supplier's certificates |
| Operational/Technical Data | |
| Working pressure | 1.5 to 10 Kgf/cm2 |
| Weight (Approx.) | 0.12 Kgs. |
| Finish | |
| Nozzle | Natural finish or Chromium plated |
| Approvals & Marking | |
| Approvals | |
| Marking | ARMORFIRE/K-factor/Spray Angle |
| Warranty | |
| Warranty & Guarantee | 12 Months from the date of supply |
