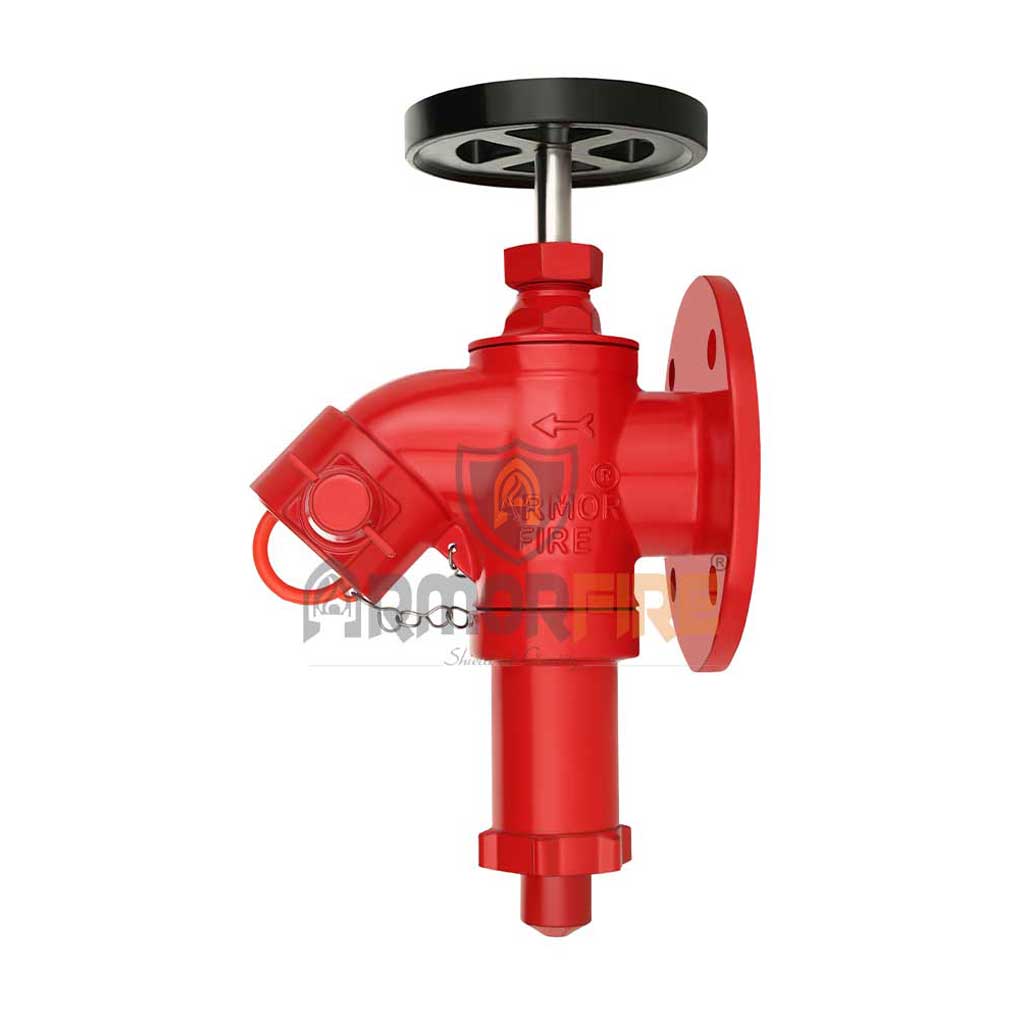

PRESSURE REDUCING HYDRANT VALVE
| GENERAL DATA | |
| Make | Armor fire |
| Size | 3” (75 mm) – Flanged |
| Inlet | 3” Flanged inlet Drilling as per IS : 1538 |
| Outlet | 2½” (63 mm) Female Inst. Adaptor |
| Reference Standard | IS:5290 |
| MATERIAL OF CONSTRUCTION | |
| Body, Bonnet, Female outlet, Cam tooth and parts | S.S. 304 (IS: 3444 Gr. I) |
| Stem | IS: 6603 (SS 304) |
| Pressure Regulating Mechanism | SS 304 (IS: 3444 Gr. I) |
| Hand Wheel | Cast Iron (IS: 210) |
| Washers | Rubber IS 937 |
| TESTING AND QUALITY CONTROL | |
| Dimensional check | Dimensions as per Drawing IS:5290 |
| Seat Leakage Test | 21 kg/cm² for 2½ min. |
| Valve Body Test | 35 kg/cm² for 2½ min. |
| Pressure Regulation Test | Outlet pressure of 7.0 ± 0.5 bar at varying inlet pressures (10.0, 13.0, 16.0 bar) with flow of 900 (±45) LPM |
| Documentation | Internal inspection report and Test Certificate |
| OPERATIONAL / TECHNICAL DATA | |
| Working pressure range | Up to 16 bar |
| Weight (approx.) | 12 kg Approx. |
| FINISH | |
| Body | Shade No. 536 of IS 5 |
| Wheel | Painted - Black Paint |
| Parts | Polished |
| APPROVALS & MARKING | |
| Approvals | ---- |
| Marking on Hydrant valve | ARMORFIRE / Size / Year of Manufacture / SI No. |
| WARRANTY | |
| Warranty & Guarantee | 12 Months from the date of supply |
| FLANGE DIMENSIONS | ||||
|---|---|---|---|---|
| Standard | Flange Ø | PCD | No. of Holes | Hole Ø |
| IS : 1538 | 200 mm | 160 mm | 4 | 19 mm |
| ANSI B16.5 150# | 190 mm | 152 mm | 4 | 19 mm |
