Orifice Plate in Fire Fighting System Manufacturer
Looking for a high-quality Orifice Plate? Armor Fire is the leading Orifice Plate manufacturer in India. We well-designed these equipments to enhance the effectiveness and efficiency of fire protection systems. The Orifice Plate is used to measure and regulate water flow and ensure enough distribution to hydrants and sprinklers. By creating the pressure drops, these plates maintain water pressure consistently and make a protective water barrier. In this way, our orifice plate in the firefighting system plays a vital role in fire suppression. Trust us for the engineered fire protection solutions, and safeguards for your property.
Introduction to Orifice Plate in Fire Fighting System

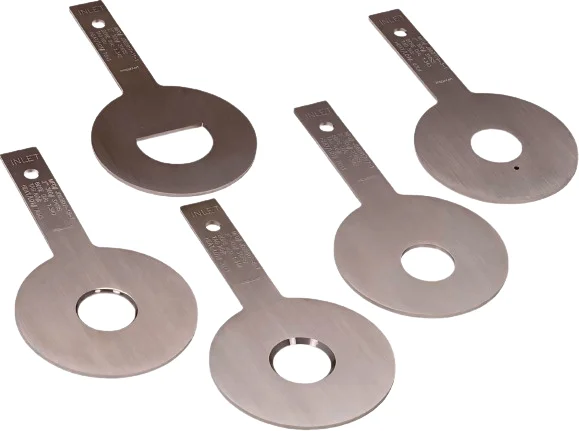

Orifice plate for fire fighting systems is an important component in fire safety systems and used to measure and control water flow. It is designed as a thin plate with an engineered hole in the middle, and installed in a piping network to create pressure drop. It allows firefighters for flow measurement and regulation.
In fire safety systems, these plates ensure the accurate distribution and flow rate of water to several parts of the system. This regulation maintains optimal flow and pressure and ensures that hydrants and sprinklers work effectively during a fire emergency. This equipment creates a pressure drop when water passes through the hole. By regulating water flow, it works as a water barrier and aids firefighters to control and extinguish fires quickly.
Specifications of Orifice Plate
Here are specifications about the material, size, thickness, etc about the Orifice Plate you should know
| Specification | Value |
|---|---|
| Size of Monitor | 63mm |
| Size of Inlet Flange | 90mm |
| Outer Diameter | 190.5mm |
| Bolt Circle Diameter | 152.4mm |
| Bolt Hole Diameter | 19mm |
| Number of Holes | 04 |
| Thickness | 23.8mm |
| Flange Diameter/Height | 127/1.6mm |
| Material of Handle | Mild Steel IS:1732 |
| Material of Branch Pipe | Aluminium/Stainless Steel |
| Material of Nut | Gun Metal IS:778 |
| Material of Bearing | Stainless Steel |
| Material of Airpok | Gun Metal IS:778 |
| Material of Nozzle | Stainless Steel |
| Confirming Specification | IS: 8442 |
| Operative Test | Tested at 0.7 N/mm² at an angle of 30° |
| Discharge Capacity | 1750 l/min |
| Horizontal Throw | 53m |
| Working Pressure | 0.7 N/mm² |
| Documentation | Test Certificate |
| Warranty | 12 Months from the date of supply |
Why Choose Us for an Orifice Plate?
Competitive Pricing
We have manufactured cost effective products that give great value to your investment.
Quality Assurance
Buy high-quality Orifice plates from us to ensure optimal performance and durability.
Expertise
Our orifice plate suppliers have years of experience in the fire safety industry and give you expert guidance.
Customer Support
Our customer support team always guides you with your queries and concerns.
Quick delivery
Our orifice plate exporters ensure fast delivery to deliver your project on schedule.
Benefits of Orifice Plate
- Flow Regulation : Orifice plate regulates the flow precisely in firefighting systems. It creates a controlled limit and ensures that the water supply will provided across the system effectively. It maintains the optimal pressure levels, which is important to properly operate fire hydrants and sprinkler systems.
- Increase System Performance : This equipment provides accurate and consistent flow control and enhances the performance of fire safety solutions. It regulates flow and ensures that the sprinkler head will get enough amount of water, and suppresses fires efficiently.
- Cost-effective : The orifice plates are affordable tools for precise flow control and measurement. It's easy-to-install feature and simple design make it a suitable tool for fire safety needs. It also needs less maintenance and reduces needs of huge operational costs.
- Versatility : Orifice plate manufacturers design fire safety solutions to use for different applications. Its versatility makes it the right tool to use in different environments and conditions.
- Reliability and durability : Our Orifice plates are manufactured with quality materials and withstand harsh conditions. This durability keeps it reliable for long-term use and maintains optimal performance.
- Compliance with standards : The Orifice plate is compliant with the performance and safety standards. It ensures that it meets the industry standards for fire hydrant systems. This compliance guarantees that products are well-designed and approved by experts.
- Safety : As we tell you, the Orifice plate maintains water flow and pressure. It contributes to the safety of occupants and buildings. It performs well at optimal conditions and saves you from major disasters.
FAQs
What are the materials used in orifice plate manufacturing?
The orifice plate is made from carbon steel, stainless steel, and other durable materials to ensure high performance and longevity.
Does the orifice plate customized for different systems?
Yes, it is possible to customize this tool for different systems. We can customize it in terms of thickness, diameter, and pressure and adhere to industry standards.
How does an orifice plate regulate the flow of water?
An orifice plate creates a pressure drop when water passes through it. It regulates the flow rate and maintains high pressure in the system.
Are orifice plate fits to use for retrofitting existing systems?
Yes, this equipment is suitable to use for new and existing systems both and makes it a versatile tool.
What is the lifespan of the orifice plate?
The orifice plates last for long years, and give you reliable performance during the lifespan.
