Deluge Valve Manufacturer

A deluge valve is paramount to any fire protection system. In the industries where time is vital, performance with rapid response fire suppression systems is required. Whether the installation is a new one or an upgrade, a significant factor in the system's safety, durability, and compliance with worldwide regulations is the reputation of the deluge valve manufacturer in India.
As a premier deluge valve supplier, Armor Fire delivers the most advanced fire control solutions for oil refineries, chemical plants, power plants, and aircraft hangars in relation to reliable performance.

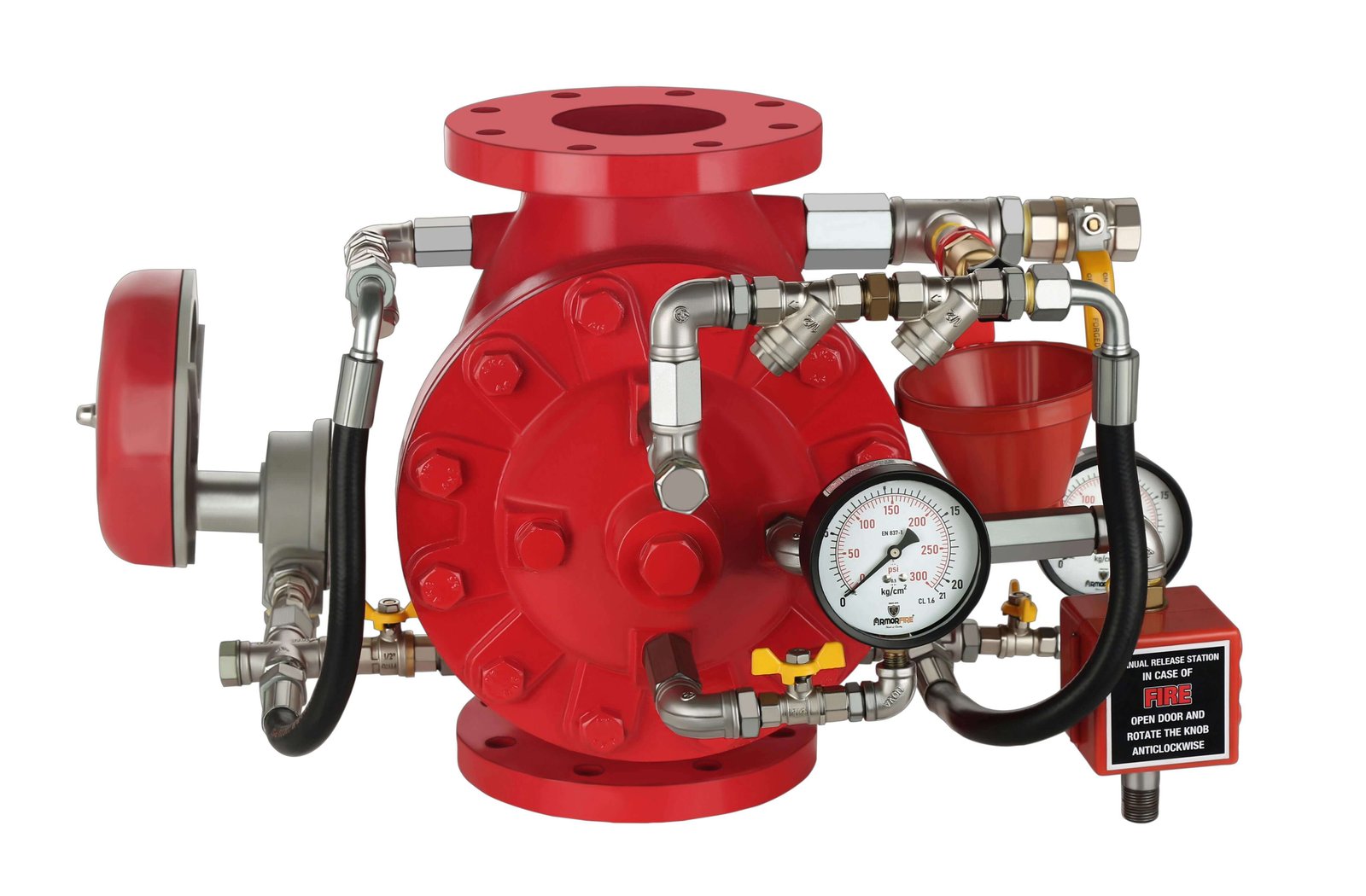

deluge-valves-manufacturers

What is a Deluge Valve?

A deluge valve is a control valve designed for fixed fire protection systems. Fixed fire protection systems are different from typical sprinkler systems. Whereas the sprinkler systems have individual heads that activate by heat detection, a deluge valve system has all nozzles activated simultaneously upon fire detection.

Fire detection systems will send signals to the deluge valve when they detect fire or smoke. The deluge valve will open, which allows water (or foam) to flow through all discharge nozzles. The number of nozzles will cover the entire area being protected instantly. They are suited for:

  • High Hazard Industrial Areas
  • Transformer Yards
  • Aircraft Hangars
  • Petrochemical and Gas Processing facilities

These systems form a critical operational and functional part of today's deluge valve fire fighting system architecture. The NFPA recommends inspections and maintenance for a deluge valve system because of their fire protection system.

Technical Specification of Deluge Valve

The following are the normative technical specifications of a wet alarm check valve:

Parameter Specification
Make ARMOR FIRE
End Connection Flange X Flange
Nominal Size 200, 150, 100, 80 & 50 NB
Maximum Service Pressure 17.6 kg/sq.cm
Thread Connection BSP
Mounting Vertical or Horizontal
Flange Connection ANSI B16.5 #150
Trim Galvanized & Stainless Steel fittings with Brass Valves
Factory Hydrostatic Test Pressure 35 kg/sq.cm (500 psi)
Finish Red

Features of the Deluge Valve

As with every high-quality component, there are a few key factors to consider when selecting a deluge valve:

  • Integrated alarm and test trim for performance checks and system alerts.
  • Supports electric, pneumatic, and hydraulic trims for versatile activation methods.
  • High-pressure rated operates up to 17.6 kg/cm², tested at 35 kg/cm².
  • Can be installed horizontally or vertically to suit different piping layouts.
  • Incorporates drain and drip valves to minimize water accumulation in the system.
  • Trim parts are constructed of galvanized steel, stainless steel, and brass for anti-corrosion properties.
  • ISI marked and factory-tested to ensure quality and performance in real-time conditions.

We partition our alarm check valves in India and ensure all features adhere to the highest international quality standards.

Why Choose Armor Fire as Your Deluge Valve Manufacturer?

Armor Fire is a trusted name in deluge valve manufacturers in India for a reason. Here are some reasons why we are the industry's preferred choice:

An ISI-certified deluge valves manufacturer, with products that are produced to international fire protection and performance standards.

Designed to meet high operating pressure, perfect for heavy industrial and commercial fire protection.

Available with electric, dry pilot, or wet pilot trims for flexible configurations in deluge valve systems.

Corrosion-resistant materials are used, allowing long life and minimum upkeep.

As the best deluge valve exporter in this category of deluge valves, we are trusted by the industry's leading EPC contractors and safety engineers across India for reliable fire protection.

Choosing Armor Fire is more than a product. You are choosing safety, reliability, and service. Our service does not end upon delivery. We as a deluge valve supplier, have architectural and technical guidance post-sales with installation and maintenance support, including training modules that are specific to your team.

Benefits of the Deluge Valve

The deluge valve fire fighting system provides several benefits:

  • Quick Response: Deluge Valve ensures immediate water discharge upon activation, helping to control fire rapidly in high-risk areas.
  • Wide Area Coverage: Used with open nozzles or sprinklers to provide total flooding protection over large hazardous zones.
  • Large Area Coverage: Intended with open nozzles or sprinklers for uniform flooding protection within larger hazardous zones.
  • Multiple Actuation Modes: These systems may be used as electric, pneumatic dry pilot, or hydraulic wet pilot allowing variability in installation.
  • Alarm Activation: Includes provision for test and alarm trim for real-time notification during valve operation.
  • No Corrosion: Construction with galvanized steel, stainless steel, and brass for preventing corrosion properly.

As a reputable fire alarm check valve supplier, Armor Fire manufactures valves to complement your safety and reliability.

FAQs

What industries make use of deluge valve systems?

+

Industries like oil & gas, transformer protection, and who are involved in chemical processing, and aircraft hangars use Deluge valve systems.

Are a Deluge valve and a sprinkler valve the same or not?

+

A sprinkler works as a nozzle, except that a deluge valve activates all nozzles at the same time for quick and effective fire suppression.

Can I use foam with a deluge valve?

+

Many systems can use water, foam, or a chemical agent, depending on the risk.

Is Armor Fire a manufacturer certified by a local manufacturer?

+

Yes, we are a UL and FM-approved certified deluge valve manufacturer in India.

Want to understand how Deluge Valves safeguard high-risk zones? Talk to our specialists now!
